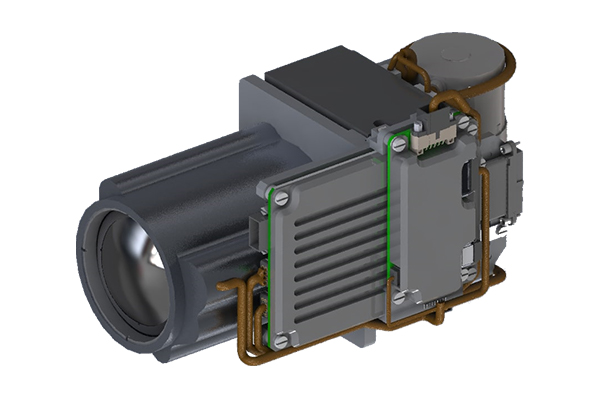

Lynx
Thermal Imaging Camera
Lynx Medium Wave Infra-Red (MWIR) thermal imaging camera is utilized MCT/InSb midwave cooled IR sensors with high sensitivity, integrated with advanced image processing algorithm, to provide vivid thermal image videos, to detect objects in details in total darkness or harsh environment.
Lynx thermal imaging camera is easy to be integrated with multiple interfaces, and available to be customized rich features to support user's second development. With the advantages, they are ideal to be utilized into thermal systems such as Handheld thermal systems, surveillance systems, remote monitoring systems, gas detection, and more.
Applications
- Search and rescue
- Surveillance
- Forest fire prevention
Technical specifications
| Specifications | |
|---|---|
| Spectral range | 3,7 – 4,95 µm |
| Detector array resolution | 640х512 |
| Detector pitch | 15 µm |
| NETD | < 30 mK |
| Lens | Continuous zoom, F/5.5 |
| Focal length | 20 – 275mm |
| FOV | 1.9° х 1.6° (F = 275 mm, NFOV) 26.9° х 21.7° (F = 20 mm, WFOV) |
| Digital video output | HD-SDI Ethernet (H264,t ONVIF) |
| Analog video output | PAL NTSC |
| Comms | RS-422 Ethernet USB 3.0 |
| Power source | 28 VDC (18 – 32 V) |
| Nominal power at steady stage | < 25 W |
| Operating temperature | -32°C to 55 °C |
| Weight | 1,4 kg |
| Size (LxWxH) | 190mm х 101mm х 114mm |
| Autofocus | yes |
| Dynamic range enhancement | LACE, Linear, Edge enhancement |
| Non-uniformity corrector | Built-in reference and quadratic NUC |
