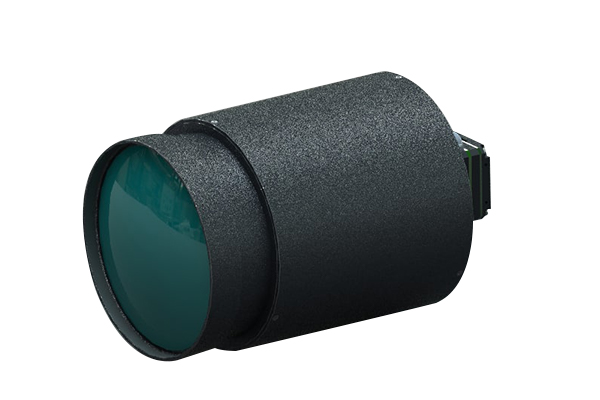

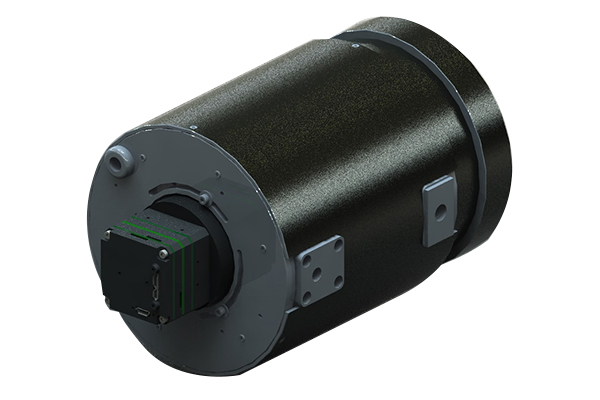

UC-640LR
Thermal Imaging Core
Thermal Imaging Core UC-640LR is a new generation thermal imaging system, with high sensitivity, continuous digital zoom and WDR image processing to offer high quality thermal imagery performance. And multiple infrared lens and expansion boards options are available to enhance its functions for integrators.
Thermal Imaging Core UC-640LR have increased electronics to offer low power consumption to thermal system integrations. Their common mechanical & electrical compatibility is between different thermal cores formats for thermal integrators, and make them well-suited for thermal applications and thermal integrations, such as unmanned aerial vehicles, handheld thermal imagers, thermal night vision systems, driving vision enhancement, security and surveillance, and more.
Applications
- Night driving
- Surveillance
- Firefighting
Technical specifications
| Specifications | |
|---|---|
| Spectral range | 8 – 14 µm |
| Detector array resolution | 640х480 |
| Detector pitch | 17 µm |
| NETD | < 55 mK |
| Digital zoom | 2x, 4x (via RS232 controlled) |
| Frame rate | 30Hz |
| Lens | Continuous zoom, F/1.0 |
| Focal length | 35 – 105mm |
| FOV | 5.9° х 4.4° (F = 105 mm, NFOV) 17.9° х 13.4° (F = 35 мм, WFOV) |
| Digital video output | USB 3.0. |
| Communication interface | RS-232/USB 3.0 |
| Power source | 4 VDC to 5,5 VDC (USB power) |
| Nominal power | < 5 W |
| Operating temperature | -32°C to 55 °C |
| Weight with lens | 1,6 kg |
| Size (LxWxH) with lens | 333mm х 140mm х 135mm |
| Non uniformity calibration | Shutterless technology |
